Introduction
As a professional technician specializing in Mercedes-Benz electrical systems, one error that occasionally arises in the fuel management system is Diagnostic Trouble Code (DTC) 2225 – Fuel Level Sensor on the Left Has a Short Circuit to Positive. This issue, while less common than engine or transmission codes, can significantly impact fuel gauge accuracy and overall vehicle performance. In this blog post, I’ll break down the meaning of this code, its possible causes, how to diagnose it properly, and the best steps for repair.
What Does the 2225 Code Mean?
The 2225 error code indicates a short circuit to positive in the wiring or component of the left-side fuel level sensor. Mercedes-Benz vehicles often use a dual fuel tank configuration (especially in models with saddle-style tanks), with sensors on both sides to accurately monitor fuel levels. The left sensor is responsible for relaying the fuel level from one half of the tank to the Engine Control Unit (ECU) and instrument cluster.
When a short to positive is detected, it means that a wire or connection is receiving unintended power, which can cause false readings or disable the sensor entirely.
Symptoms of Code 2225 in Mercedes-Benz
A short to positive in the fuel level sensor system can present the following symptoms:
- Erratic or inaccurate fuel gauge readings
- Fuel gauge stuck at full or empty
- Check Engine Light or fuel system warning
- Difficulty calculating fuel range or sudden drops in estimated range
- Diagnostic scanner reveals fault code 2225
Common Causes of Error Code 2225
Several issues can lead to this specific error in Mercedes-Benz vehicles:
- Damaged Fuel Level Sensor (Left Tank Side) – A shorted internal circuit can send constant voltage.
- Corroded or Shorted Wiring Harness – Wires that are pinched, frayed, or exposed may short to power.
- Incorrectly Installed Fuel Pump Assembly – If a previous repair was not done properly, wires may have been pinched or misrouted.
- Faulty Electrical Connector – Moisture intrusion or corrosion at the connector can cause a short to positive.
- Faulty Rear SAM (Signal Acquisition Module) – This module interprets signals from the fuel level sensors. A failure can misreport input voltages.
Step-by-Step Diagnosis and Repair
If your Mercedes-Benz is throwing a 2225 error code, here’s a methodical approach to troubleshooting and repair:
Step 1: Scan the Vehicle with Diagnostic Equipment
- Use STAR Diagnostic, or a compatible scan tool to read the fault code.
- Document the freeze frame data and verify the error is specific to the left fuel sensor.
Step 2: Inspect Fuel Gauge Operation
- Observe how the gauge behaves with the ignition on.
- Note if it moves at all or stays fixed, indicating a wiring or sensor issue.
Step 3: Disconnect the Fuel Level Sensor
- Access the left-side fuel level sensor under the rear seat or trunk, depending on the model.
- Unplug the connector and inspect it for corrosion, bent pins, or moisture.
Step 4: Check for Short to Positive with a Multimeter
- Test the sensor signal wire for voltage with the key on.
- A short to battery voltage on a signal wire confirms the short.
- Trace the wire back to the SAM or ECU to find the fault location.
Step 5: Inspect and Repair Wiring
- Follow the wiring harness visually and look for chafed, pinched, or melted sections.
- Repair the affected wire by cutting out the damaged portion, splicing, soldering, and heat-shrinking properly.

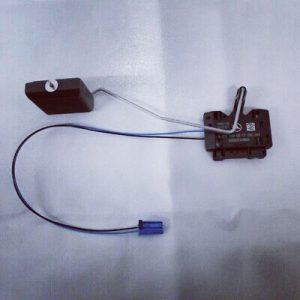

Step 6: Test the Fuel Level Sensor
- If wiring is intact, test the sensor’s resistance range as you move the float manually.
- Replace the sensor if resistance is erratic or out of spec.
Step 7: Clear Codes and Re-Test
- After repair or replacement, clear the fault codes.
- Turn the ignition on and observe if the fuel gauge responds normally.
- Re-scan the vehicle to ensure code 2225 does not return.
When to Seek Professional Assistance
Though some can inspect connectors or access the fuel tank area, tracing short circuits and handling sensitive fuel system components should ideally be performed by a certified technician. Improper handling can result in further electrical issues or fuel system malfunctions.
Conclusion
The 2225 Fuel Level Sensor Left – Short Circuit to Positive error in Mercedes-Benz vehicles may seem daunting, but with a structured diagnostic approach, it can be resolved effectively. Ignoring this issue may lead to fuel miscalculations and potential breakdowns.
As a certified Mercedes-Benz electrical technician, I specialize in accurate diagnostics, sensor repairs, wiring corrections, and module programming. If you’re experiencing fuel gauge issues or any other electrical concerns, reach out today for expert, reliable service tailored to your Mercedes-Benz. Let me get your star back on the road, running like it should so call Mercedes Benz engineer 09015329867.
