If you’re driving a Mercedes-Benz GLE 166 and experiencing shifting issues, or your car seems stuck in “Park” or “Neutral,” there might be a problem with the Intelligent Servo Module (ISM). The ISM module is a critical component in the vehicle’s transmission system, responsible for managing gear shifts electronically. A faulty ISM can lead to gear shift errors and potential immobilization. This guide provides step-by-step instructions on replacing and reprogramming the ISM module.

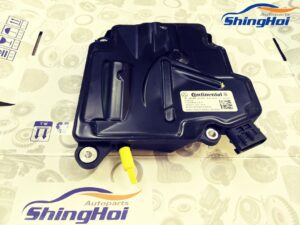

What is the ISM Module?
The ISM module, or Intelligent Servo Module, is a transmission control module that uses electronic signals to manage the gear selector. When it malfunctions, the vehicle may face shifting difficulties, and you may see error messages or warning lights on the dashboard. Replacing and reprogramming the ISM is often necessary to restore smooth, reliable shifting.
Signs of a Faulty ISM Module
- Difficulty Shifting Gears: The vehicle hesitates or fails to shift gears properly.
- Gear Stuck in “Park” or “Neutral”: The car may remain immobilized due to a lack of response from the transmission.
- Warning Light or Error Message: A “Transmission Malfunction” warning may appear on the dashboard.
Tools Needed
- Socket wrench set
- screwdriver
- Diagnostic scanner or Star Diagnostic tool
- Replacement ISM module
- Safety gloves and glasses
Step-by-Step Guide to Replacing and Reprogramming the ISM Module
Step 1: Prepare the Vehicle
- Park the vehicle on a flat surface, engage the parking brake, and ensure the engine is off.
- Disconnect the main battery by loosening the negative terminal with a socket wrench. This helps prevent any electrical hazards during the replacement process.
Step 2: Locate the ISM Module
In the GLE 166 model, the ISM module is typically found near the transmission area. You may need to remove certain trims and covers to access it, which can vary based on the vehicle’s exact configuration.
Step 3: Remove the Faulty ISM Module
- Use a screwdriver to unscrew any bolts securing the ISM module in place.
- Carefully disconnect the wiring harness connected to the ISM module. Be cautious to avoid damaging any wires.
- Remove the old ISM module from its mounting position.
Step 4: Install the New ISM Module
- Align the new ISM module in the same position as the old one.
- Reconnect the wiring harness securely to ensure a stable connection.
- Use the screws to secure the module in place.
Step 5: Reconnect the Battery
- Reconnect the negative terminal of the battery.
- Start the vehicle to check if any warning lights remain on the dashboard. At this stage, you’ll likely need to reprogram the new ISM module to ensure compatibility with the vehicle’s system.
Step 6: Reprogramming the ISM Module
Replacing the ISM module alone won’t complete the repair; it also needs to be reprogrammed to the vehicle’s electronic system. This requires a diagnostic tool, preferably a Star Diagnostic tool or equivalent diagnostic scanner.
- Connect the Diagnostic Tool: Connect the diagnostic tool to the OBD-II-port, located under the dashboard.
- Access the Transmission Control Module (TCM): Once connected, navigate to the Transmission Control Module in the diagnostic tool’s interface.
- Select ISM Reprogramming: Follow the diagnostic tool’s prompts to initiate the ISM reprogramming sequence.
- Program and Test: The diagnostic tool will communicate with the new ISM module and program it to the vehicle. This process may take a few minutes.
- Calibration: After programming, the tool may ask for calibration. Complete this step to ensure the module is fully aligned with the transmission system.
Step 7: Final Checks and Test Drive
- Check for Warning Lights: Verify that all transmission-related warning lights have cleared from the dashboard.
- Test the Shifting Mechanism: Shift through all gears (Park, Reverse, Neutral, Drive) to ensure smooth operation.
- Test Drive: Take the vehicle for a short test drive to confirm that the transmission operates without any issues.
Final Tips
- Using Genuine Parts: Always use a genuine Mercedes-Benz ISM module to ensure reliability and compatibility.
- Professional Programming: While the steps above outline a general process, using a professional diagnostic tool like the Mercedes-Benz Star Diagnostic system is highly recommended. A qualified technician may also have access to updates and settings that enhance module integration.
