Mercedes-Benz is known for integrating advanced safety systems to enhance vehicle stability and control, especially in challenging driving conditions. Two crucial systems that contribute to this are the Electronic Stability Program (ESP) and Anti-lock Braking System (ABS). In this guide, we’ll dive into how these systems work, their role in keeping your Mercedes stable and safe, and where to locate the ABS sensors for maintenance or troubleshooting.
How Does the Mercedes-Benz ESP System Work?
The Electronic Stability Program (ESP) is Mercedes-Benz’s version of stability control technology, designed to prevent loss of control and skidding, especially during high-speed maneuvers or slippery conditions. ESP constantly monitors the vehicle’s speed, steering angle, and yaw rate (the rotational movement around the vertical axis) to detect any potential loss of traction. If ESP detects that the car is about to skid or slide, it will intervene by automatically applying brake pressure to individual wheels or reducing engine power to restore control.
Key Components of the ESP System:
- Yaw Rate Sensor: Measures the rotational movement of the vehicle.
- Steering Angle Sensor: Detects the driver’s intended direction by measuring the angle of the steering wheel.
- Wheel Speed Sensors: Provide real-time data on each wheel’s speed.
- Brake Actuator: Controls brake pressure applied to each wheel individually.
- Engine Control Unit (ECU): Modulates engine power based on ESP’s input to reduce speed as necessary.
How Does the ABS System Work?
The Anti-lock Braking System (ABS) works in tandem with ESP and prevents the wheels from locking up during sudden or hard braking. This is especially crucial in emergencies, where locked wheels can cause a complete loss of steering control. By rapidly pulsing the brakes on each wheel individually, ABS allows the driver to maintain steering control, reducing stopping distances on slippery surfaces and increasing vehicle stability.
Key Components of the ABS System:
- ABS Control Module: Receives data from the wheel speed sensors and controls brake pressure accordingly.
- Wheel Speed Sensors: Monitor the speed of each wheel to detect any that might be locking up.
- Brake Actuator: Modulates brake pressure by pulsing the brakes, preventing wheel lock-up.
- Hydraulic Pump and Valves: Work together to control brake fluid pressure to each wheel independently.
ABS Sensor Locations in a Mercedes-Benz
The ABS sensors, also known as wheel speed sensors, are located at each wheel. These sensors play a dual role in providing real-time data to both the ABS and ESP systems.
Front Wheel ABS Sensors

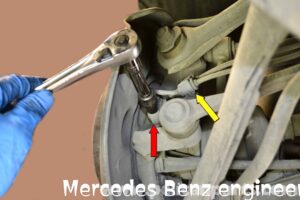

- Location: The front wheel ABS sensors are located near the wheel hub on both the driver and passenger sides. They are usually attached to the wheel bearing assembly.
- Access: To access these sensors, remove the wheel and locate the sensor wire running to the wheel hub area. The sensor itself is often secured with a small bolt and may require gentle wiggling to remove due to accumulated dirt or corrosion.
Rear Wheel ABS Sensors
- Location: The rear ABS sensors are similarly located near the wheel hub on both sides. They are often mounted on the rear axle or control arm assembly, depending on the model.
- Access: Like the front sensors, you’ll need to remove the rear wheels for easier access. The sensor wires may be shielded for protection, and you’ll find the sensor near the wheel bearing assembly or connected directly to the hub.
Common Issues and Troubleshooting ESP and ABS Sensors
- ABS Light On: If the ABS light illuminates on your dashboard, it often indicates a fault with one or more wheel speed sensors or issues within the ABS module itself.
- ESP Light On: The ESP warning light may indicate a problem with the steering angle sensor, yaw rate sensor, or other related components.
- Wheel Speed Sensor Failure: Over time, wheel speed sensors can wear out due to exposure to heat, dirt, and moisture. Replacing a faulty sensor can usually resolve ABS or ESP issues.
Steps to Replace ABS Sensors
- Disconnect the Battery: Start by disconnecting the battery to prevent accidental triggering of the ABS or ESP system during replacement.
- Remove the Wheel: Loosen and remove the wheel where the faulty sensor is located.

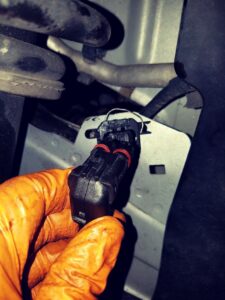

- Locate the Sensor and Disconnect: Find the sensor at the wheel hub and carefully remove any mounting bolts or clips.
- Install New Sensor: Position the new sensor in the same spot, reattach the bolts or clips, and connect the sensor to the wiring harness.
- Reconnect the Battery and Test: Once all components are secured, reconnect the battery and test the system to ensure the warning lights are off and functionality is restored.
Importance of Professional Maintenance for ESP and ABS
ESP and ABS systems are critical to the safety and handling of your Mercedes-Benz. Regular maintenance, including checking sensor connections and keeping them free of dirt, can prolong the lifespan of these systems. However, when issues arise with ESP or ABS, specialized tools and knowledge are often required to diagnose and repair the problem accurately.
If you’re experiencing issues with your ESP or ABS, it’s best to consult a professional. As a certified electrician technician specializing in Mercedes-Benz, I have the tools and expertise needed to diagnose, repair, and maintain these complex systems. Whether it’s a sensor replacement or a complete ESP system check, I’m here to ensure your Mercedes is safe and performing at its best. Contact me today for expert Mercedes-Benz repair and maintenance services! 09015329867 Mercedes Benz engineer Abuja pelubenz.com
