Mercedes Benz how to fix suspension in mercedes Benz Gl 166

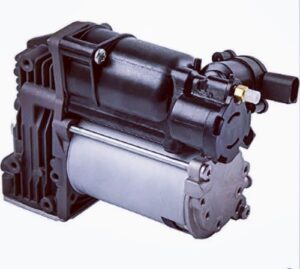

Air suspension pump

The Mercedes-Benz GL-Class 166 is a popular luxury SUV with a reputation for delivering a smooth and comfortable ride. But, like all vehicles, it can experience wear and tear, especially in areas like the suspension system, which is crucial for both comfort and safety. In this post, I’ll walk you through diagnosing and fixing common suspension issues on the Mercedes-Benz GL 166, from air suspension to shocks and struts.

Understanding the Suspension System in the GL 166

The suspension system in the Mercedes-Benz GL 166 is sophisticated, designed to handle different driving conditions while maintaining stability and comfort. Key components in the suspension system include:

  • Air Suspension System: Uses air springs instead of coil springs, providing a smooth and adaptive ride.
  • Shocks and Struts: Work to absorb impact and maintain contact with the road.
  • Control Arms and Bushings: Provide structure and absorb vibrations.
  • Sensors and Control Modules: Detect road conditions and adjust the suspension accordingly.

When suspension issues arise, they can impact the handling, stability, and comfort of your drive. Now, let’s look at the most common issues and how to address them.

Step 1: Diagnose the Issue

To properly fix any suspension problem, start by accurately diagnosing the issue. Here are signs of a suspension problem to watch out for:

  1. Unusual noises: Clicking, knocking, or creaking sounds, especially over bumps.
  2. Vehicle sagging: One side of the car may sit lower if an air suspension component fails.
  3. Rough or uneven ride: A harsh or bumpy ride often points to issues with shocks or air springs.
  4. Leaking fluid: Air suspension systems sometimes use pneumatic or hydraulic fluids, and leaks can cause system failures.

Step 2: Checking the Air Suspension System

  1. Check the Air Compressor:
    • The air compressor is responsible for inflating the air springs. If it fails, the vehicle will sit lower, especially in the front or rear.
    • Use diagnostic equipment to check for error codes related to the compressor. If it’s malfunctioning, you may need to replace it.
  2. Inspect Air Springs for Leaks:
    • Air springs are made of rubber, which can crack or deteriorate over time. To check for leaks, spray soapy water on the air spring and look for bubbles.
    • If you spot leaks, replace the air springs with high-quality OEM or aftermarket parts.
  3. Check the Air Suspension Relay and Fuse:
    • If your compressor isn’t working, it may be due to a blown fuse or a faulty relay. The fuse box is typically located under the hood, where you can find and replace the fuse if needed.
    • If the relay is defective, it can be replaced by disconnecting the old one and plugging in a new one.
  4. Examine the Air Suspension Valve Block:
    • The valve block controls air distribution to the suspension. If one side sits lower, this part could be the culprit.
    • Look for leaks or blockages, and replace the valve block if it shows signs of failure.

Step 3: Shocks and Struts

Even with an air suspension system, the GL 166 still relies on shocks and struts to absorb impact:

  1. Check for Worn Shocks and Struts:
    • Shocks and struts wear out over time, causing excessive bouncing, body roll, and poor handling. Inspect them visually for leaks or signs of wear.
    • If they show signs of wear, replace them in pairs (both front or both rear) to maintain balance and handling.
  2. Inspect Mounting Hardware:
    • The shocks and struts are connected to the vehicle’s frame with mounting hardware, which can loosen or wear out. Tighten any loose bolts and replace worn hardware as needed.

Step 4: Electrical Diagnosis for Suspension Control Module

In many cases, a suspension issue can be traced back to the control module or sensors. Here’s how to troubleshoot them:

  1. Read Error Codes:
    • Using a diagnostic scanner, read the suspension module’s error codes. Common codes for the GL 166’s air suspension include C1525 (compressor malfunction) and C1321 (air spring leak).
  2. Test Suspension Height Sensors:
    • Height sensors determine the vehicle’s ride height and feed this information to the suspension module. If the sensors fail, they may need to be recalibrated or replaced.
  3. Inspect Wiring and Connections:
    • Electrical issues can sometimes be as simple as a loose or corroded connector. Inspect all wiring connections to the compressor, sensors, and control module for any signs of damage.

Step 5: Perform a System Reset and Test Drive

  1. Reset the Suspension System:
    • Once you’ve replaced or repaired the necessary parts, reset the system using a diagnostic tool. This will clear any error codes and allow the module to recalibrate.
  2. Take a Test Drive:
    • A test drive will confirm if the repair was successful. Pay attention to how the vehicle handles and feels over various surfaces.

Final Note: Regular Maintenance Tips

To keep the suspension in top condition:

  • Check air suspension components regularly, especially in colder climates.
  • Avoid driving on rough terrain unless necessary, as this can increase wear and tear.
  • Address minor issues immediately to prevent further damage.
