Introduction
In the world of automotive electronics, few components are as critical to engine operation as the crankshaft position sensor. As an experienced electrician technician specializing in Mercedes-Benz vehicles, I’ve seen firsthand how vital this sensor is to engine performance, fuel efficiency, and drivability. In this blog post, I’ll dive deep into what the crankshaft sensor does, how it works in Mercedes-Benz systems, symptoms of failure, and what steps to take when it goes bad.

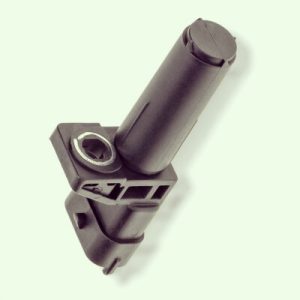

What Is the Crankshaft Position Sensor?
The crankshaft position sensor (often abbreviated as sensor) monitors the position and rotational speed of the crankshaft. It sends this data to the engine control unit (ECU), allowing the ECU to determine:
- The exact position of the engine’s pistons
- Engine speed (RPM)
- When to fire the spark plugs
- When to inject fuel into the combustion chamber
In Mercedes-Benz vehicles, the crankshaft sensor plays a key role in ensuring smooth engine operation, optimizing fuel consumption, and reducing emissions. Without accurate input from this sensor, the engine will not function correctly and may fail to start altogether.
How the Crankshaft Sensor Works
Sensor Design
Mercedes-Benz typically uses a magnetic or Hall-effect sensor for crankshaft position detection. The sensor is mounted near the crankshaft (often at the rear of the engine, close to the flywheel) and works in conjunction with a toothed wheel attached to the crankshaft.
Operation
As the crankshaft rotates, the wheel passes by the sensor, creating a signal that varies with the position and speed of rotation. The ECU interprets these signals to time fuel injection and spark ignition events accurately.
Common Symptoms of a Faulty Crankshaft Sensor in Mercedes-Benz
When the crankshaft position sensor starts to fail, it can trigger a host of drivability issues. Here are the most common symptoms I’ve observed in Mercedes-Benz vehicles:
- Engine Cranks but Won’t Start – One of the most common signs. The ECU can’t determine crankshaft position, so it disables fuel and spark.
- Intermittent Stalling – Especially noticeable when the engine is hot. The sensor may fail as it heats up.
- Rough Idling or Hesitation – Incorrect timing leads to engine misfires or uneven running.
- Reduced Power and Poor Acceleration – If the ECU receives weak or incorrect signals, it switches to limp mode.
- Check Engine Light (CEL) – Common diagnostic trouble codes include P0335 (Crankshaft Position Sensor A – Circuit Malfunction).
- No RPM Signal During Cranking – A diagnostic scan will show a 0 RPM reading, even when the engine is cranking.
Diagnosing Crankshaft Sensor Issues
Step 1: Scan for Fault Codes
Using a Mercedes-Benz STAR Diagnostic Tool scan the vehicle’s ECU for fault codes related to crankshaft position, timing, or signal loss.
Step 2: Observe Live Data
Check for real-time RPM signal during cranking. No signal usually indicates a dead sensor or wiring issue.
Step 3: Inspect the Sensor and Wiring
- Locate the crankshaft sensor (usually near the flywheel housing)
- Inspect the harness for signs of damage, corrosion, or oil contamination
- Check the connector pins for proper contact
Step 4: Test the Sensor with a Multimeter
- Check for continuity
- Test voltage supply and ground
- Measure sensor output (Hall-effect sensors will produce a square wave signal during crank)
Step 5: Replace If Necessary
Crankshaft sensors are not typically serviceable. If it fails tests or shows consistent symptoms, replacement is the best option.
Replacement Tips for Mercedes-Benz
- Always use OEM or high-quality aftermarket sensors
- Clear all fault codes and recheck live data after installation
- In some models, you may need to reinitialize or perform a relearn procedure via diagnostic tools
Maintenance and Prevention
- Avoid letting oil leaks contaminate the sensor area
- Ensure engine grounds and battery voltage are stable
- Address any CEL or misfire codes early to prevent cascading issues
Conclusion
The crankshaft position sensor is a core component of your Mercedes-Benz’s engine management system. Whether you drive a C-Class, E-Class, or an AMG model, a failing sensor can lead to starting problems, misfires, and even breakdowns. Timely diagnostics and repairs are essential to maintaining engine performance and reliability.
